 1.1 prepare a cup of coffee
|
| ● we
only can sey please enjoy assembling . To japanese people we must
say more words to do it because shortage of experiece for kit ..
but to make up the plastic
parts you will be needed some technic as Protar`s..
Plastic material is PE .
● Ａll most of the parts is by
mirimeter base like as japanese motorcycle. ( cz70 use
inch bolt on brake panel bolt)
|
| ▲ return |
|
|
|
1.2 tools and oil
|
● spinner 6 mm
● spinner or eye wrench 8．10．13、14．17 mm
● hexagon-bar wrench 4．5．6 mm
● box wrench 8 mm
● screw driver ＋ small ,middle
● knipper
● plastic head hammer
● grind bar , cut knife , saw brade
● paper towel
● oily liquid
● water
● engine oil is 100cc , please
do not put in more.
Honda ultra 4 ,equivalent
|
| ▲ return |
|
2 (cuisine）
|
●
when you use a digital speedmeter by magnet signal, please
adjust the hole size to the magnet.
● sensor loactes on brake panel bracket

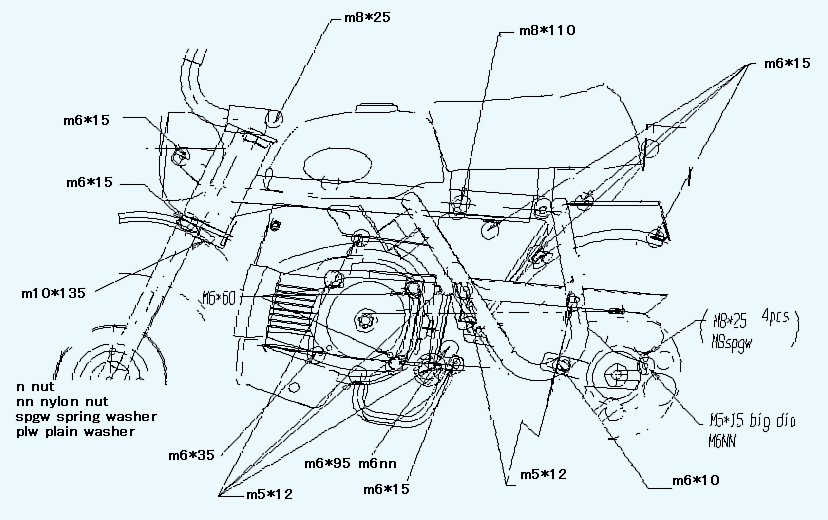

● all the aprts is temporary assembled to package. plese maek sure all
the combination by yourself. |
●
bearring for head pipe ,if yourkit is uninstalled , please insert
bearing and inner pipe , export model installation was done

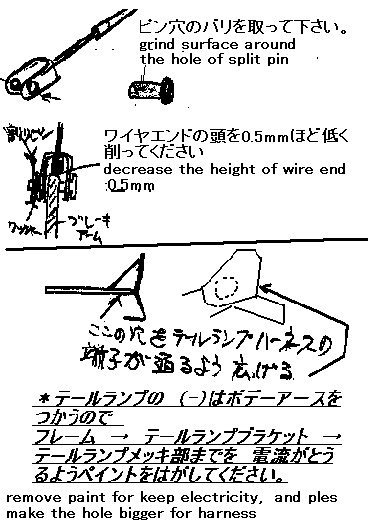

● taillam bracket , under hole for tailamp lines , please make bigger
or replace electric connectors.
● disassemling a whell, air valve should be removed to reduce
tube pressure
|
| ▲ return |
|
|
|
3 mount power supply
|
● M5 screw hole must be tapped 3places
● engine from us , above is done
● hole on frame for
engine ,little modigication shall be needed to better fitting.
Please care as like your baby!! to mounting and so on
● cable must be adjusted carefully to use
|
| ▲ return |
|
|
|
4 front frok area
|
●
handle pipe , By utilizing M8 long bolt (eg seat bolt) , pull the
handle pipe as below
● handle pipe is quite tight to have gapless installation to handle bar
holder pipe.
● use little oily liquid on the
pipe to ease.
● front fork will be installed
by M10*140 or quick release system (op)
● front fender by M6 bolt &
nut .
● Brake drum is cut out
by CNC and alluminum. to heavy usage plesae use a steel drum
set.(OP) . please enjoy as a racing parts.
● front fork hole and axle
shaft positopn must be checked while asseembling. -hole size is
axle size (12mm dia)

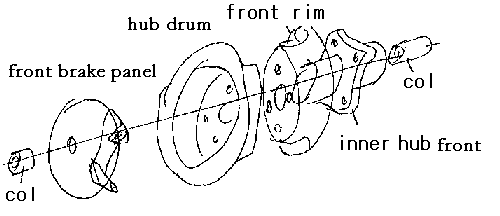

● name of wheel

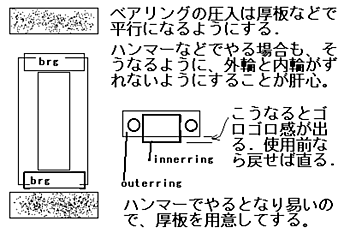

●bearing must pressed correctly. when you replace bearing
|
| ▲ return |
|
|
| |
5 rear wheel area
|
| ●
pre assembly is recommended.

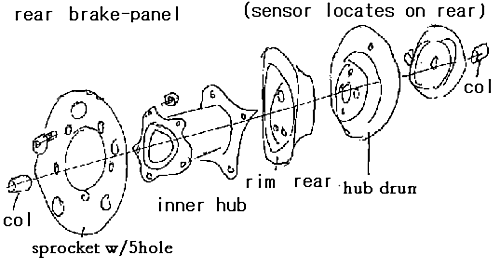

● speedometer sensor (OP)
● sensor is fitted to the plate by 3mm screw&nut or rivetting.
● senssor plate is by 4mm
screw&nut
● use locktyte.
● safety clearance must be
checked carefully.

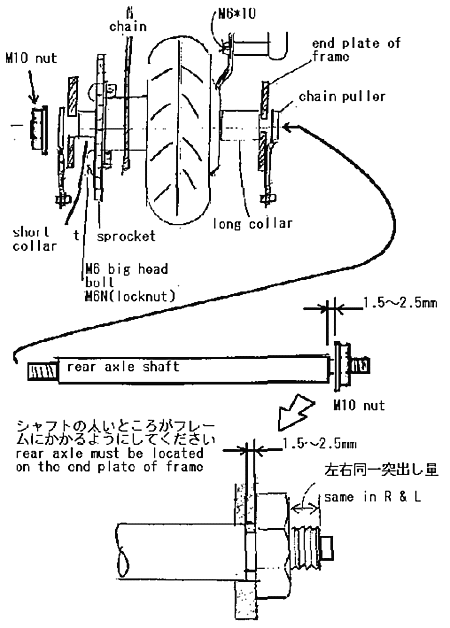

● rear wheel naming
● rear wheel
● when you refit dimmension , tool from car is usefull . but
slowly and carefully.
|
| ▲ return |
|
|
| |
6 drive hub on the engine
|
| ●
for engien brake , please put lock pin or small welding to the
front sprocket as below . we will prepare lock nut type in near future.
sorry.
● engine idling rpm should be
lower .
● Please check and check again before riding ,starting .
● idling rpm should be checked by measuring.
|
