plastic is possible to be 50% 10% scaledown.
but..)


小学入門(私はミニチュア化の研究中なのですが,分かって来た事や疑問を書いて行きた いと思います.)

ducati diana を 50%小さくできるものか?ドカティダイアナに見る1/2スケールへの道  Is it possible to 50% size workable with riding possibility ?

 way to sanjose 1/2 diana

study today`s...

  1. 不可能な理由 reason why 1/2 absolute scale is impossible..
  2. 夢は捨てられない we can find out the way to realize ..
  3. study case できるかな..
  4. case study X35...
  5. なにが...
  1. ed060118 cr110

    study today`s....

    *発電機z31dynmz1ic.gif (1180 バイト) to settle a mini dynamo , in the limited space .... try to find a manufacturer..

    Think about tyre .   design source , design , moulding and toolings, minimum quantity..  and test.. Kozaru is now prepared with special profile and pattern with oiginal grpfhic design.仔猿では専用タイヤが起こされました. size 90/70-4 に。

    もしcr110を50%ダウンするならタイヤはこうなる.tyrerim23s.jpg (2817 バイト)Supposing tyre 50% cr110252s.jpg (1779 バイト)(case CR110 is also impossible into simple minimize , imaginez la CR110 )is downed 50%, a tire will become like this.


    目次に戻る

不可能な理由 reason why 1/2 absolute scale is impossible- Impossibility..


Example 1

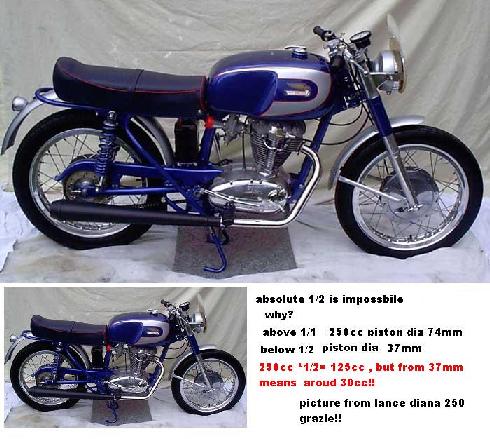

One of my favorite bike , Ducati diana 250cc engine has piston which diameter is 74mm and stroke is 57mm

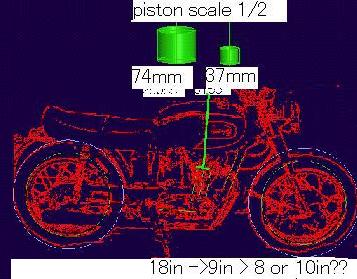

When we make 1/2scale as above below picture this must changed to

37mm and stroke is 28.5mm  ,it means 30.6cc.

waoh ,it is so difficult world to scale ..

* tyre 2.75-18 must goes to 1.4-9 , should we make it and invest for moulds ??

目次トップに戻る

夢は捨てられない we can find out the way to realize ...

HOW do you think if we use a 31cc class engine??

Tyre size 4in with outerdiameter 250mm




We will start to definit to call this scaling as kozaru way!!??

Dream size is 1/2 ,


do you feel the possiblity?? we still do not give up it.

目次に戻る

study case できるかなかも...



put original CK 2.75-9(8?)tyre




if we have a enough budjet (millions or more) , 31to35cc engine by original and 1.5*9 tyre and wheel and many 50 scale components

cr110 case with 35cc engine modified and 3.00-4 tyre wheel set . designed 2003 as trial.

目次に戻る

X35

目次に戻る

なにが...

[質問に対する回答を入力します。]

目次に戻る
