what is layout mode ?    OSCA tips for develpment. works

 when i purchased cadkey , guy for sales said ; it is for dwg ,by 2d .
3d modelinng is by modeling mode, it was 1992 or3

 it looks correct ! but  ....

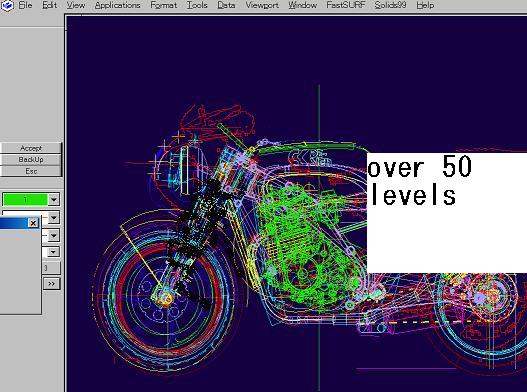

1  today I will use layout mode for the record of designing for the begining of development..
2  following case is  quite complicated development which need two models for  some phase of  designning.   prt
Classic motorcycle and  supersport, comaprison, taransfer...  are needed.
In such a work we sometime forget what is waht and begining..
(above modeling mode)

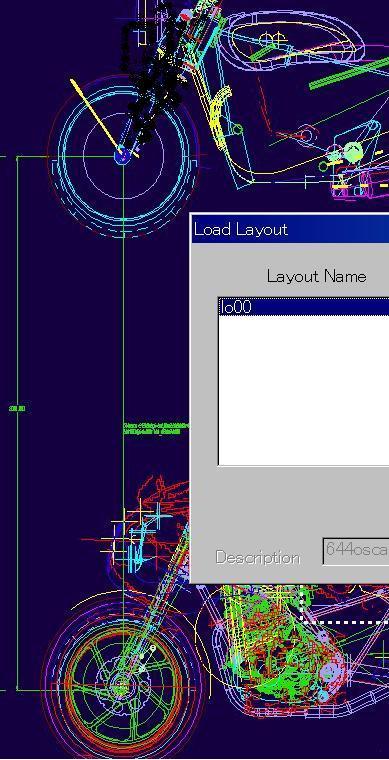

3  lo00 is layout 00 lo1
 * modeling data of  classic one is setteld to origin position x0y0z0.
 * superbike  is  located  +y2000


4 then start design freely to move  every parts. today.
 .
