We have
just started to make assembly manual for our prodicts;
1 3D data by cadkey are prepared in surface data.
2 suraface data is more stable than solid data.
3 we need betterway day by day for more efficient way
|
|
* after trying from aire frame to bmp file. -> not
so good.
* this time one nest one is by Solid and HLR

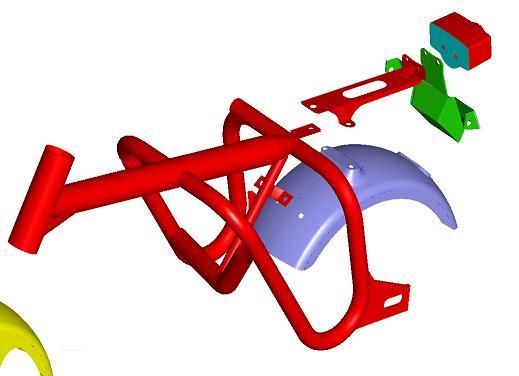

* we choosed 2nd way as shading for thining future job which
includes to printout to the paper and also to website .
* keeping data by screen shot to bmp data , translate into jpeg to
small filing
|
by Solid and HLR |
|
by Shading data
back groound color is changed after screen shot . We will be able
to grow up to whole illasutration manual.

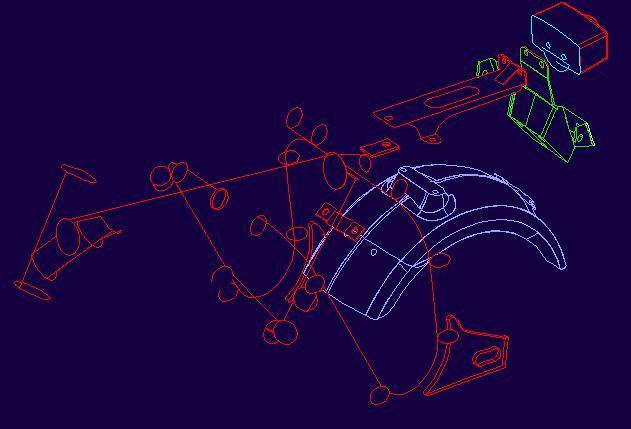

decided view angle ,view scale (0.7) in Cadkey |
this is by wireframe and by microsoft paint program.
It took a lot of time and ordinal ipmression.
|
|
|
|
